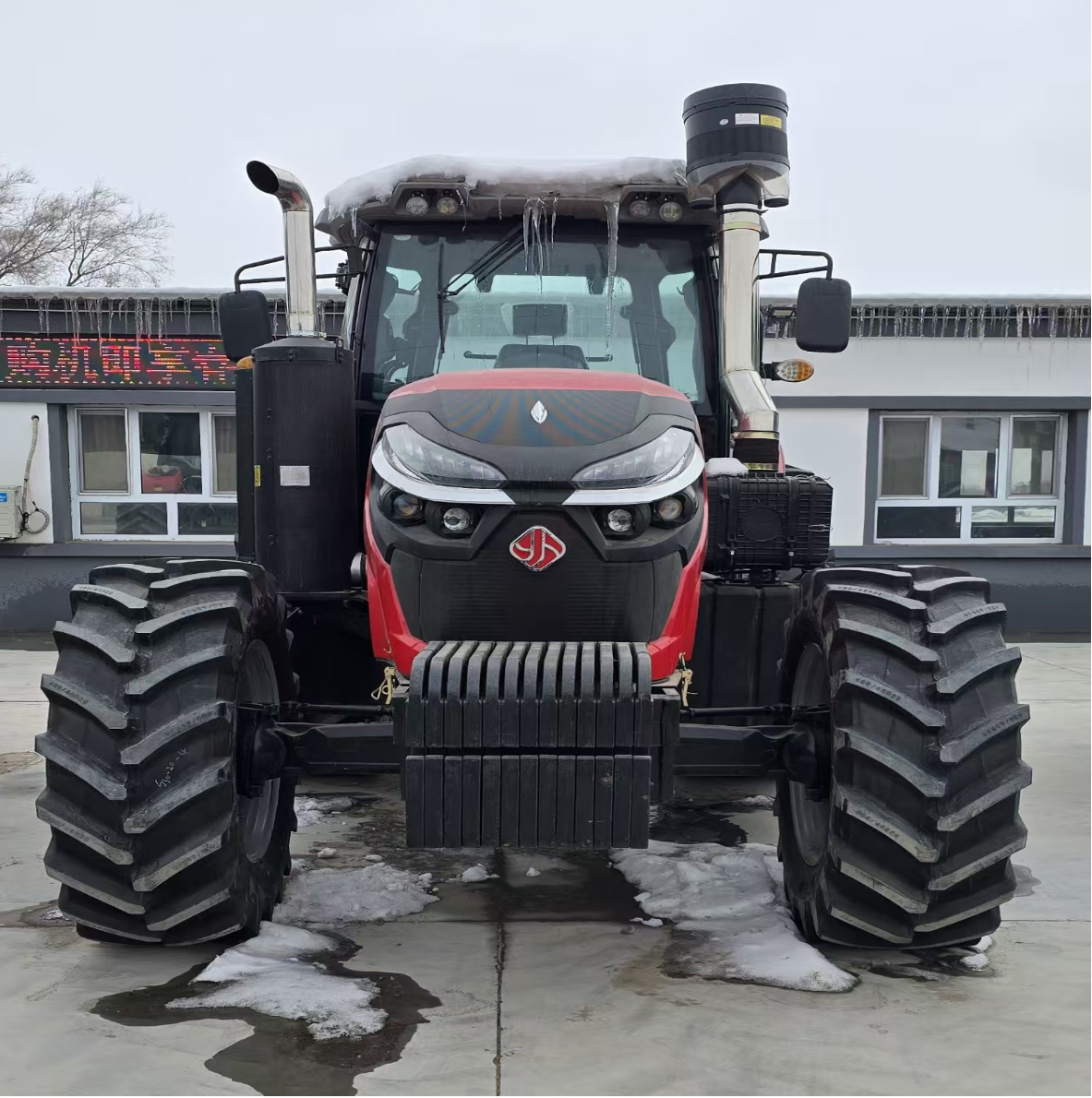

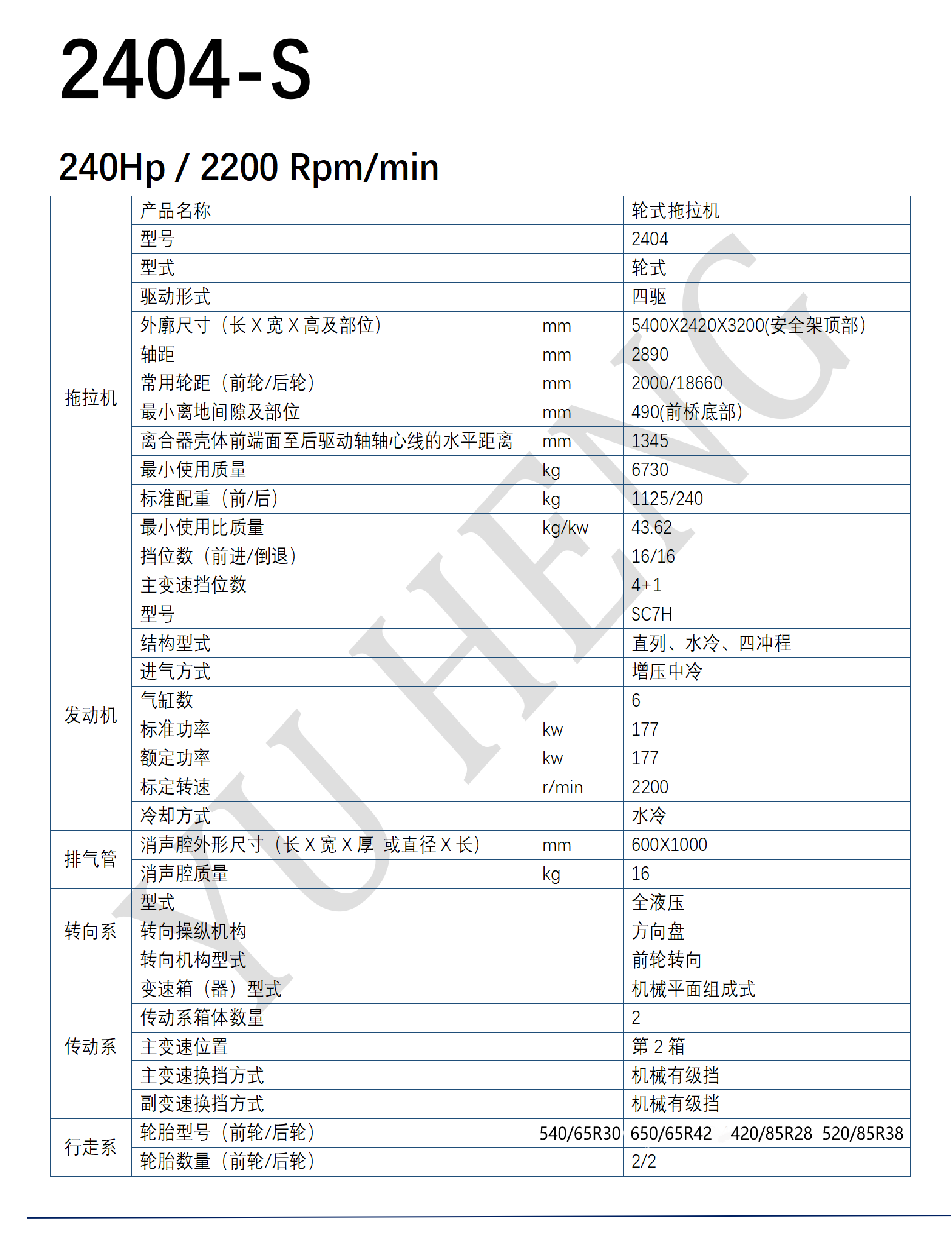

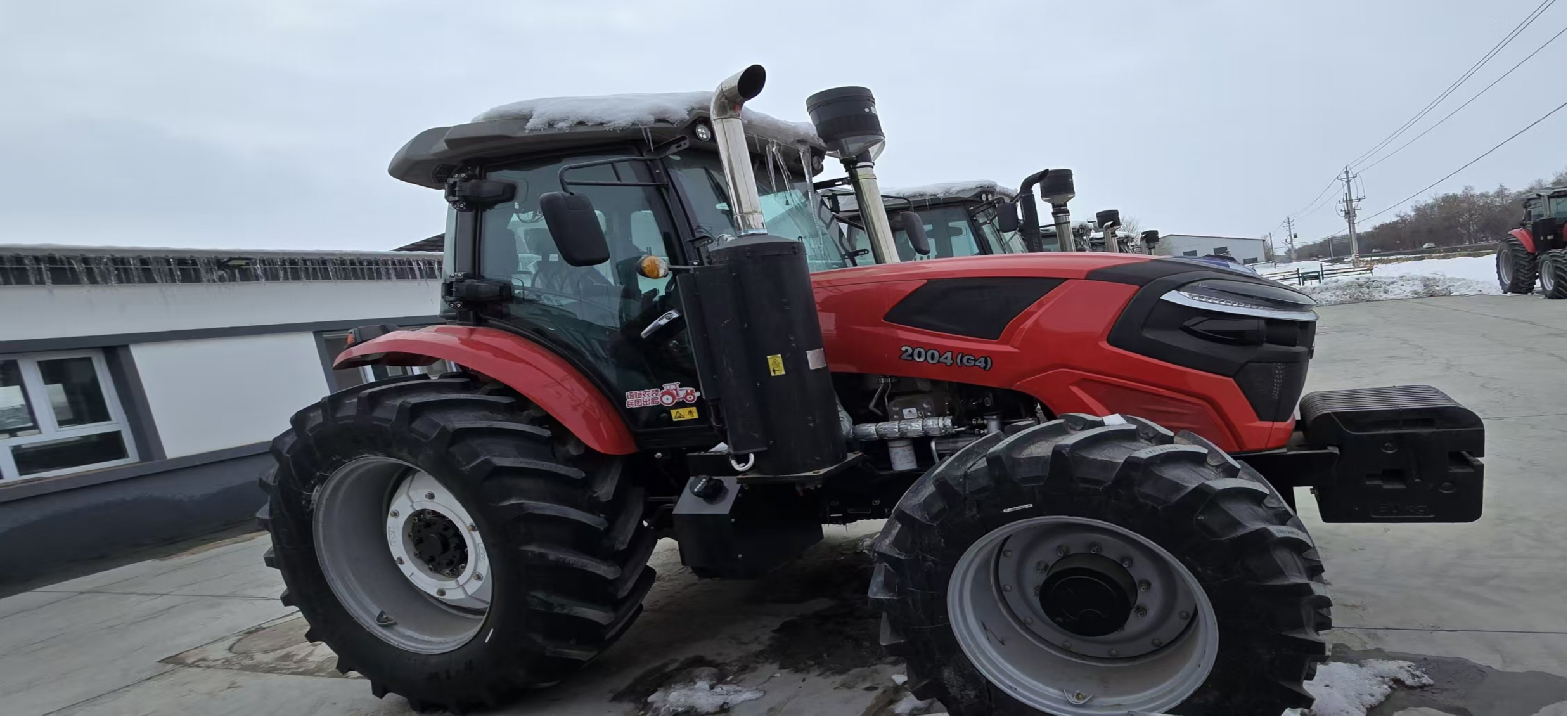

Product Name: Wheeled Tractor Model 240 Type; Drive System: Wheeled; Drive Mode: All-Wheel Drive; External Dimensions (Length × Width × Height, including specific locations): 5400 × 2420 × 3200 mm (top of safety frame); Wheelbase: 2890 mm; Standard Wheelbase (Front/Back): 2000/18660 mm; Minimum Ground Clearance and Location: 490 mm (bottom of front axle); Horizontal distance from the front end of clutch housing to the axis of rear drive shaft: 1345 mm; Minimum Service Weight: 6730 kg; Standard Counterweight (Front/Back): 1125/240 kg; Minimum Specific Service Weight: 43.6 kg/kW; Number of Speed Ranges (Forward/Reverse): 16/16; Main Transmission Gears: 4+1; Model SC7H; Engine Configuration: Parallel, Water-cooled, Four-stroke, Turbocharged, Intercooled; Number of Cylinders: 6; Standard Power: 177 kW; Rated Power: 177 kW; Calibrated Speed: 2200 rpm; Cooling Method: Water-cooled; Exhaust System: Silencer chamber dimensions (Length × Width × Thickness or Diameter × Length): 600 × 1000 mm; Silencer chamber mass: 16 kg; Steering System: Fully Hydraulic; Steering Mechanism: Front-wheel steering; Transmission: Mechanical planar configuration; Number of Transmission Cases: 2; Primary Gearbox Position: Second gearbox; Gear Shift Method: Mechanical stepped; Travel System Tires: 540/65R30 (front/wheel) / 650/65R42 (front/wheel) / 240/85R28 (front/wheel) / 240/85R38 (front/wheel); Total Tires: 2/2
