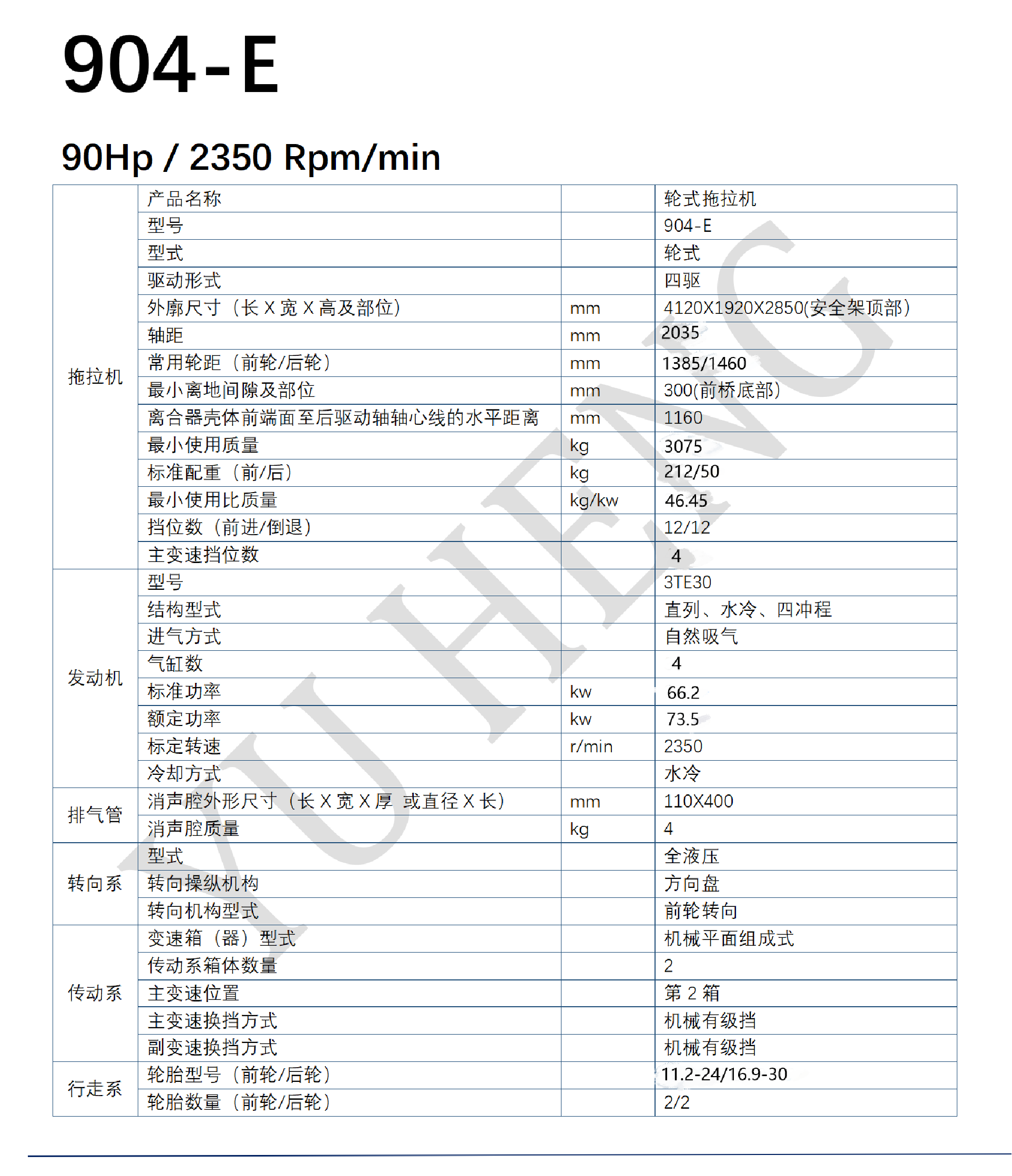

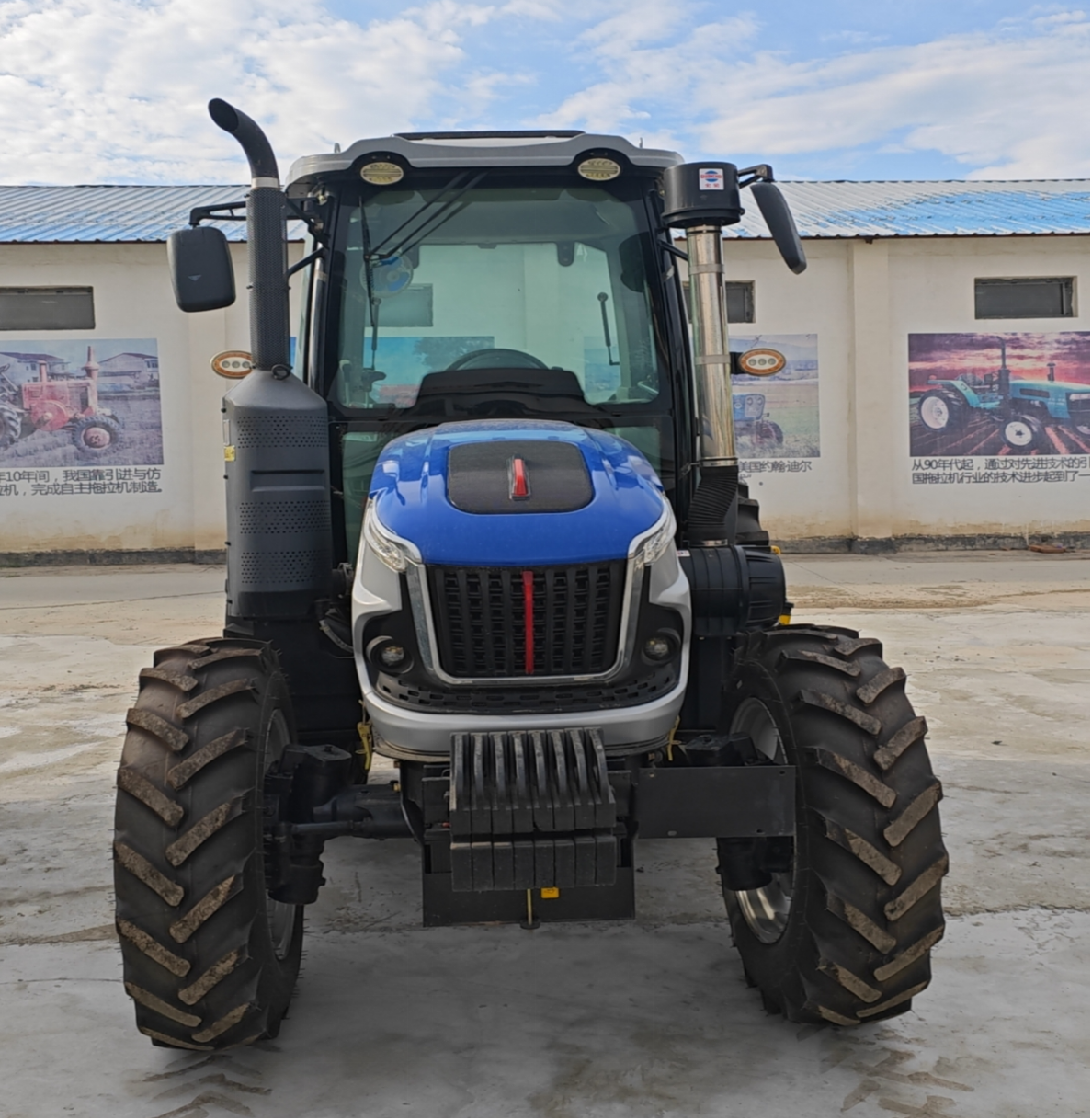

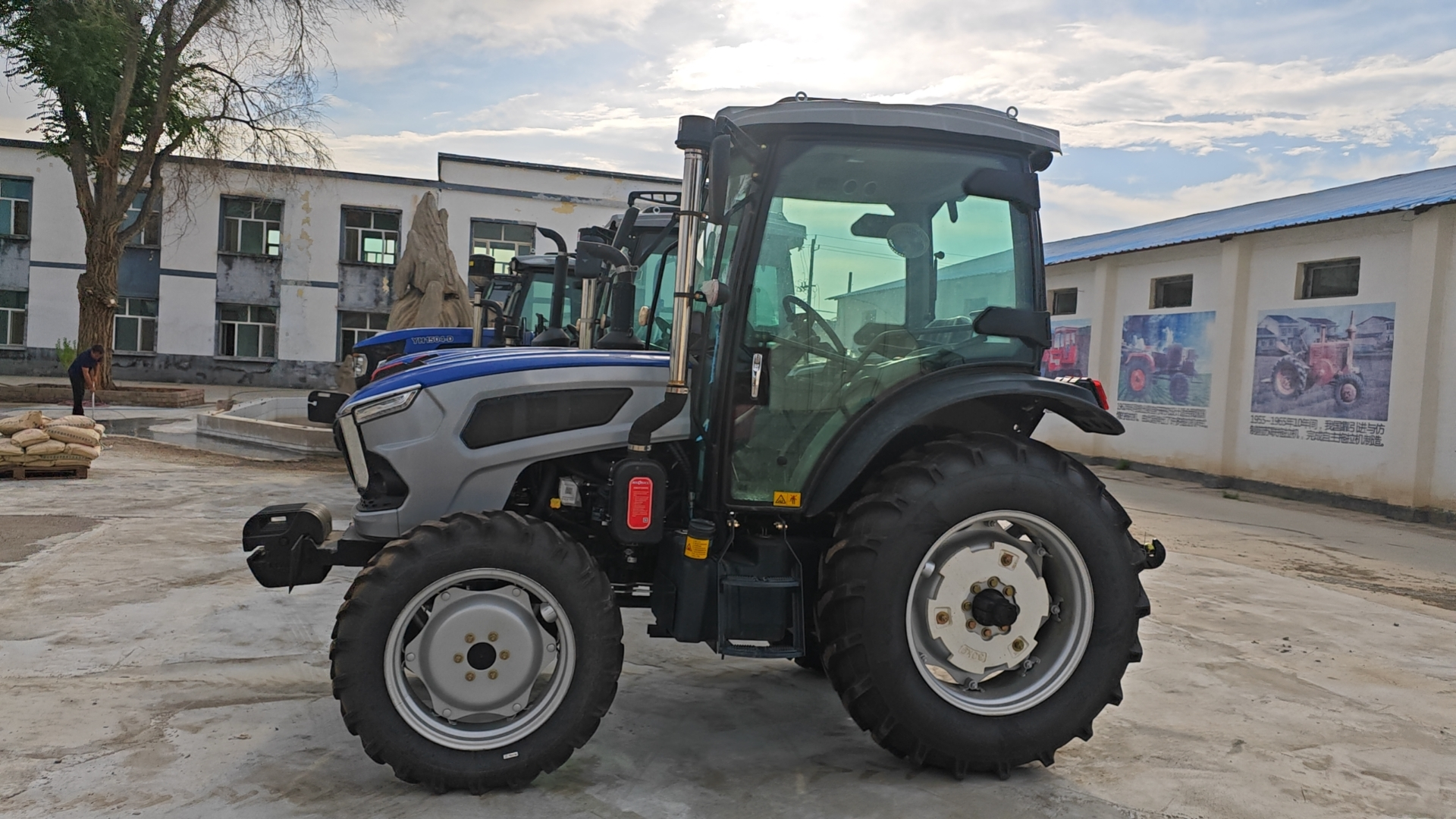

Product Name: Wheeled Tractor Model: 904-E Drive Type: Wheeled (All-Wheel Drive) Dimensions (Length × Width × Height, specific locations): 4120 × 1920 × 2850 mm (top of safety frame) Wheelbase: 2035 mm Standard wheelbase (front/rear): 1385/1460 mm Minimum ground clearance and location: 300 mm (bottom of front axle) Horizontal distance from the front end of clutch housing to the centerline of rear drive shaft: 1160 mm Minimum usable weight: 3075 kg Standard counterweights (front/rear): 212/50 kg Minimum specific weight (kg/kg): 46.45 Number of gears (forward/reverse): 12/12 Main gear ratios: 4 Model 3TE30 Structure: Straight-line, water-cooled, four-stroke Intake: Natural aspiration Number of cylinders: 4 Standard engine power: 66.2 kW Rated power: 73.5 kW Calibrated speed: 2350 rpm Cooling method: Water-cooled Exhaust system: Silencer chamber Dimensions (length × width × thickness/diameter): 110 × 400 mm Silencer chamber mass: 4 kg Steering system: Fully hydraulic Steering mechanism: Front-wheel steering Transmission: Mechanical planar configuration Number of transmission boxes: 2 Main gear position: Second box Gear shifting: Mechanical stepped Travel system: Tires (front/rear): 11.2–24/16.9–30 mm Number of tires (front/rear): 2/2
